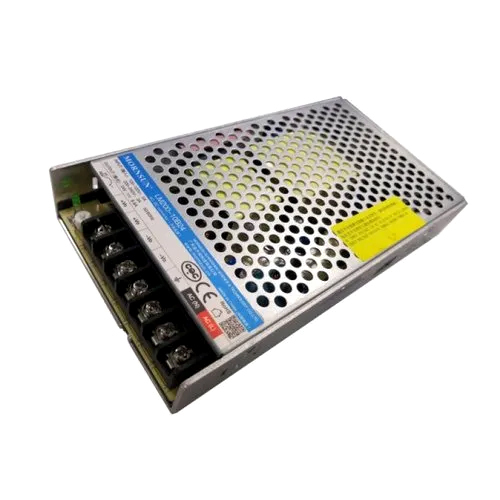

Mornsun SMPS-LM50-20B24 50 Watt 2.2 Amp 24Vdc

Mornsun SMPS-LM50-20B24 50 Watt 2.2 Amp 24Vdc Price And Quantity

• Minimum Order Quantity 10 Piece
• Price 450 INR/Piece

• Safety Standards IECUL62368, EN60335, EN61558
• Humidity 20%-90% RH non-condensing
• Insulation Voltage 3000VAC
• Input Frequency 47Hz to 63Hz
• Start-up Time <1s at 230V AC
• Output Voltage 24V DC
• Mounting Type DIN Rail or Chassis Mount
• Hold-up Time >30ms at full load & 230V AC
• Dimension (LWH) 99mm 97mm 30mm
• Isolation Class Class II (Double insulation)
• Adjustment Range 21.6~28.8V DC (output adjustable)

Mornsun SMPS-LM50-20B24 50 Watt 2.2 Amp 24Vdc Product Specifications

• Rated Power 50W
• Cooling Method Natural air cooling
• Storage Temperature -40C to +85C
• Connector Type Screw terminal
• Line Regulation 0.5%
• Output Power 50 Watt
• Power Supply AC-DC
• Current Range 0~2.2A
• Efficiency 89%
• Product Type SMPS
• Features Compact size, high reliability, low standby power, EMC compliance
• Working Temperature -30C to +70C
• Input Voltage 85-264VAC, 120-373VDC Volt (V)
• Application Industrial Automation
• Operating Temperature -30C to +70C
• Phase Single Phase
• Output Current 2.2A Ampere (amp)
• Output Type Single
• Output Frequency 47~63Hz
• Noise Level <50mVp-p Ripple & Noise
• Power Factor >0.5 full load
• Rated Current 2.2A
• Weight 310g (typical)
• Voltage Protection Over voltage, Over current, Short circuit protection
• Material Metal Casing

• Safety Standards IECUL62368, EN60335, EN61558
• Humidity 20%-90% RH non-condensing
• Insulation Voltage 3000VAC
• Input Frequency 47Hz to 63Hz
• Start-up Time <1s at 230V AC
• Output Voltage 24V DC
• Mounting Type DIN Rail or Chassis Mount
• Hold-up Time >30ms at full load & 230V AC
• Dimension (LWH) 99mm 97mm 30mm
• Isolation Class Class II (Double insulation)
• Adjustment Range 21.6~28.8V DC (output adjustable)

Mornsun SMPS-LM50-20B24 50 Watt 2.2 Amp 24Vdc Trade Information

• Supply Ability 5000 Piece Per Month
• Delivery Time 7 Days
• Main Domestic Market All India
